- Reservoir: 15 kg
- Free flow: 1700 kg/min
- Ratio: 60:1
- Air inlet size: ¼ inch NPT
- Fluid outlet size: ¼ inch JIC (Internal)
- Working Pressure: 80-100 PSI
- Output Pressure: 4800-6000 PSI
- Air consumption 10.0 foot³/min.
- With grease up to NLG12 grade
- Maximum working pressure 100PSI (6.9 BAR)

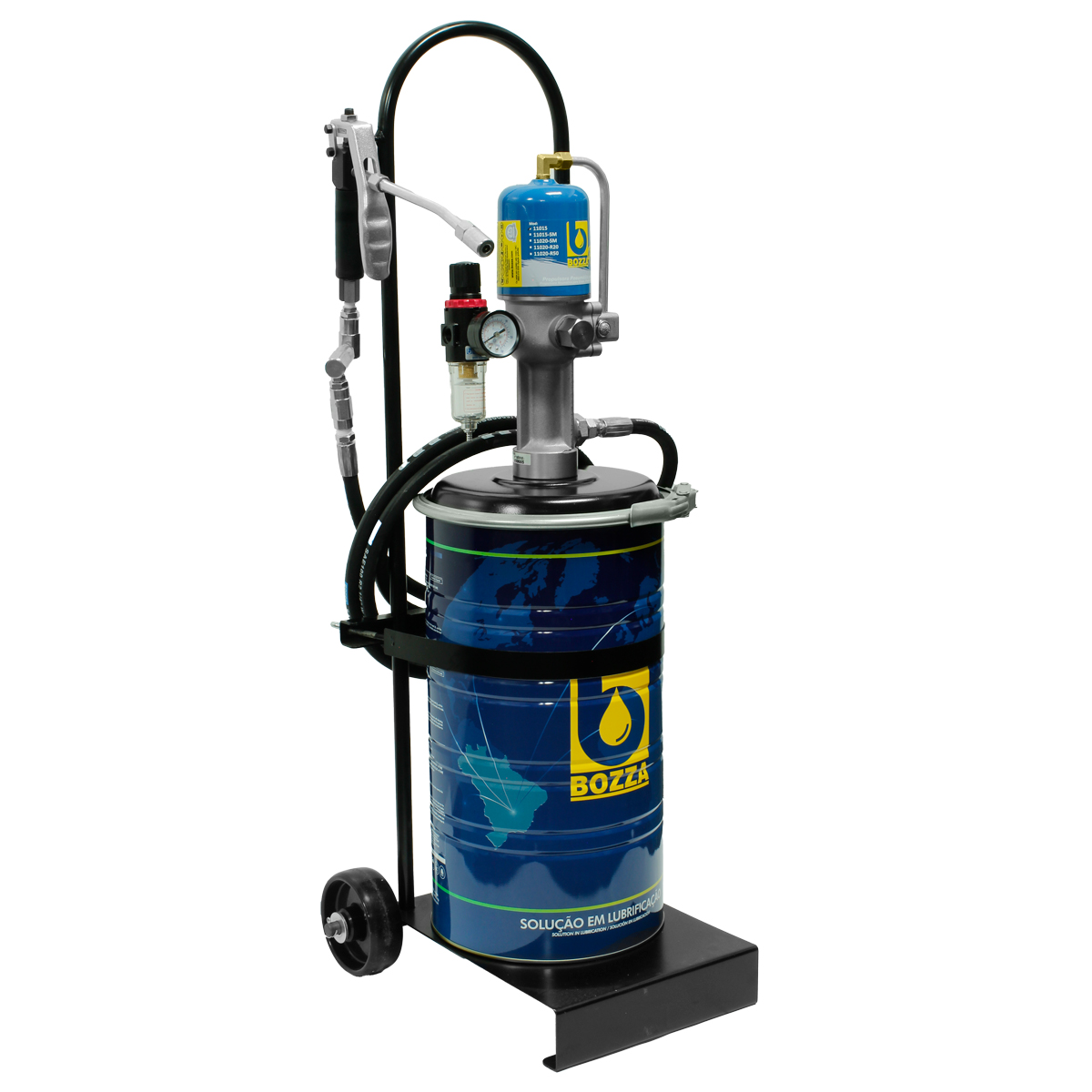

HEAVY-DUTY PROPELLING PUMP FOR GREASE – STRIKE SYSTEM 15 KG – 11015-G5
Mobile equipment for grease. Recommended for customers who require agility and efficiency in the lubrication process. Ideal for automotive dealerships, fast lube centers, service shops, heavy-duty dealerships, fleet services facilities, lube trucks, mining and agriculture, among others.
Features
- Heavy-duty propelling pump for grease with cart and reservoir;
- Air regulating filter (mod. FL2000);
- Aluminum injected block with nickel treatment;
- 3 m Hose (mod. 5680-3);
- Z swivel connection (mod. 7302);
- Fast-lock ring cover;
- Strike System: Spring and plastic compactor assembly;
- Grease control valve (mod. 5040);
- Metal air duct;
- Double muffler assembly;
- Internal filter in the suction system.
Consisting of
- Air regulating filter – (mod. FL2000;
- 3 m hose mod. 5680-3;
- Swivel connection mod. 7302;
- Control valve mod. 5040;
- Vulcanized Grease Compactor-C-8522-G3;
- Compactor Spring – 8063-C-G3;
- Metal air duct;
- Double muffler assembly;
- Internal filter in the suction system;
- 15 kg Reservoir with cart.
Optional items
- Control meter mod. BZ-2000;
- 6 m hose mod. 5680-6;
- 10 m hose mod. 5680-10;
- 15 m hose mod. 5680-15;
- 20 m hose mod. 5680-20.
